Price (excluding VAT): €169,000
Manufacture Year: 2023
Engine: 336 HP (247 kW)

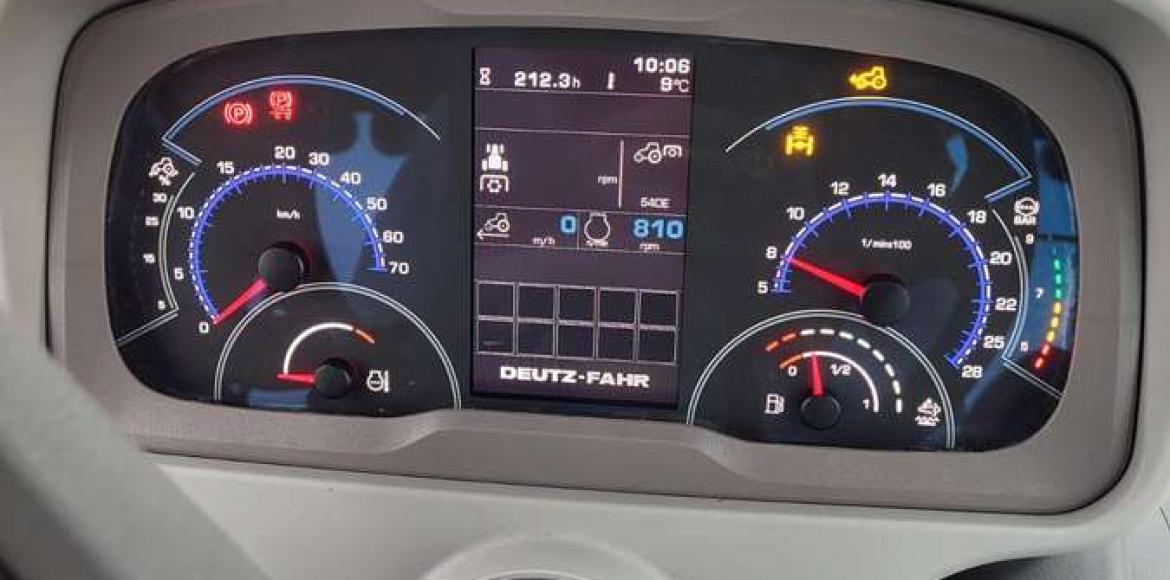

Operating Hours: 214
Specifications:

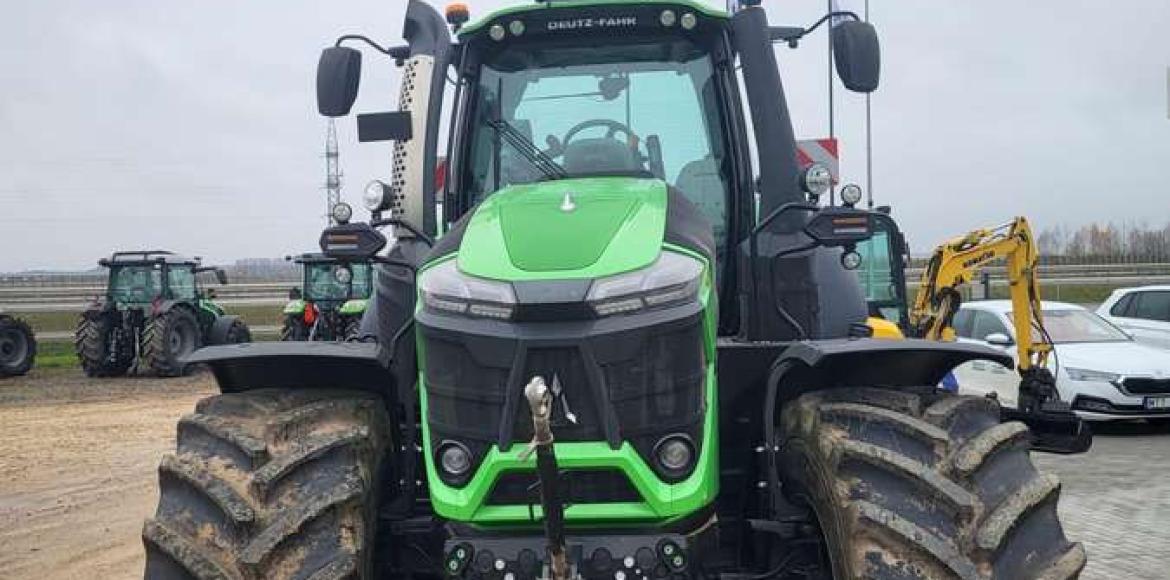

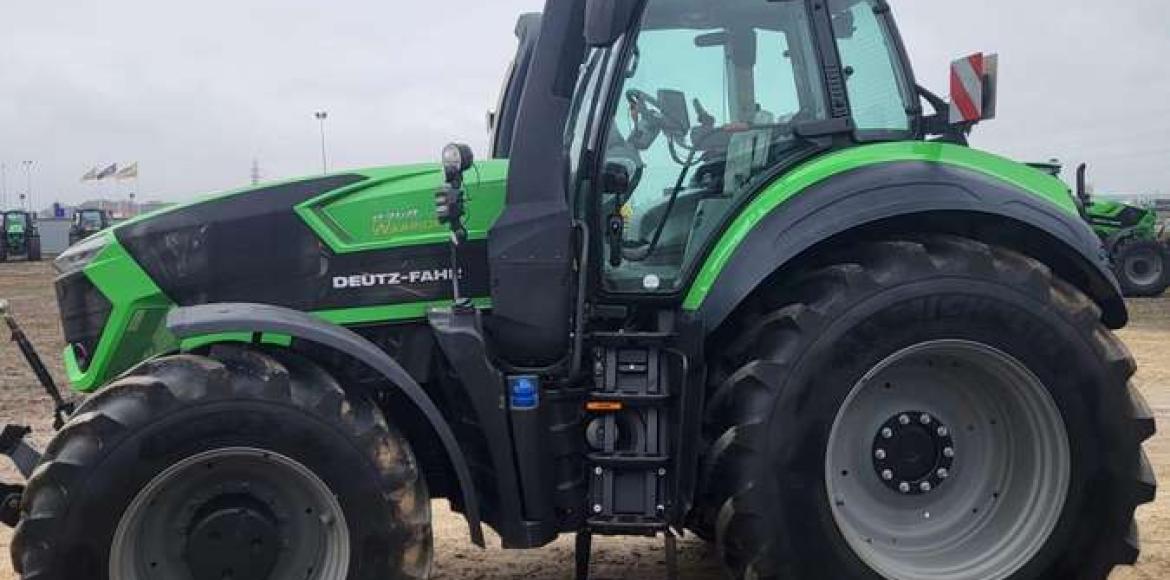

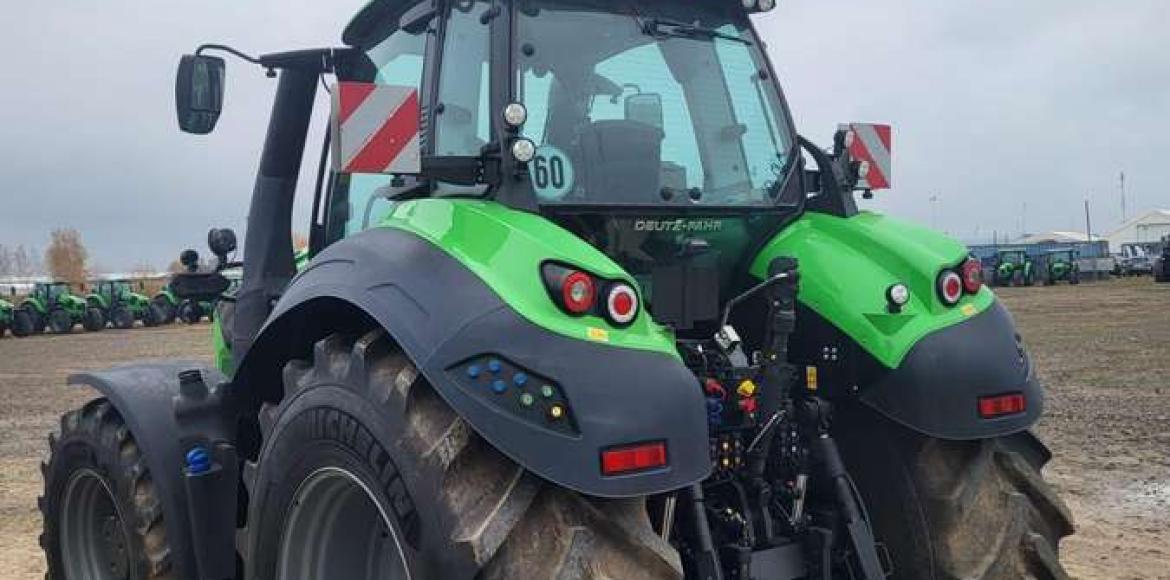

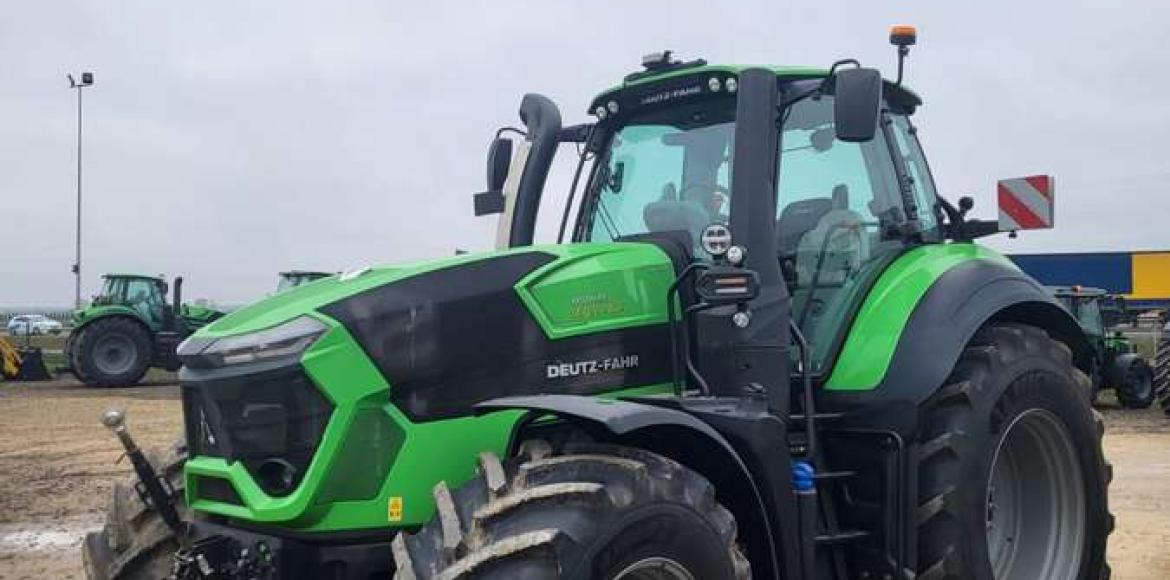

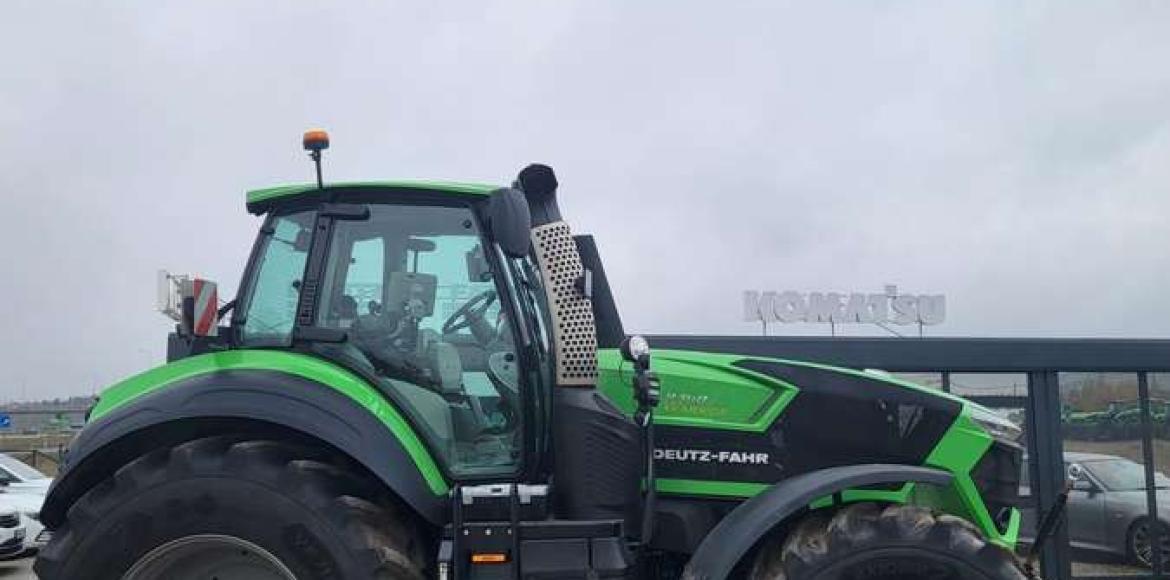

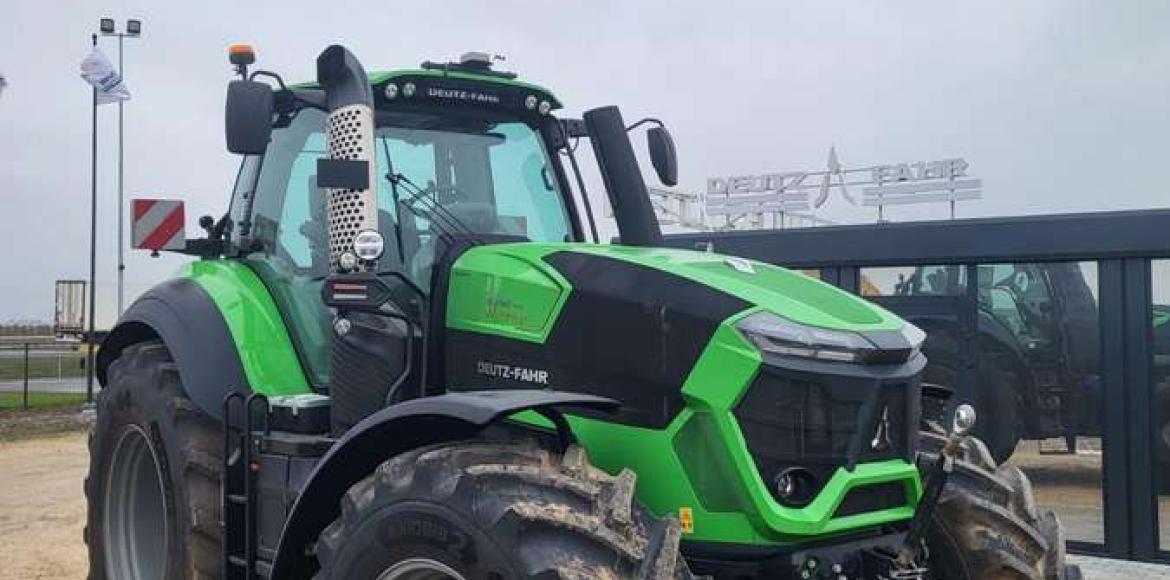

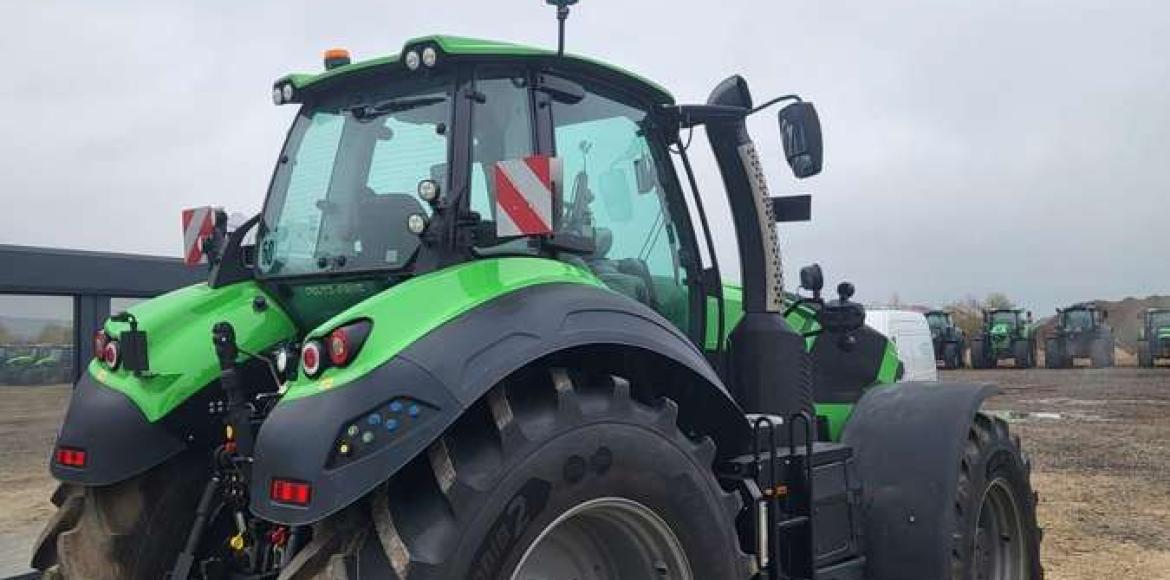

Model Name: Deutz-Fahr Agrotron 9340 TTV
Engine: 6 cylinders, 7.8 L displacement "Deutz TTCD 7.8 L06"
Certified Rated Power (ECE R120): 232 kW / 316 HP
Maximum Power (ECE R120 Standard): 247 kW / 336 HP
Transmission: Continuously variable "TTV," 50 km/h
Hydraulic System: Load-sensing, variable displacement; 120 l/min
Rear Lift Capacity: 12,000 kg
Engine:
6 cylinders, 7.8 L "Deutz TTCD 7.8 L06" engine, compliant with Stage V/Tier 5 emissions standards
Rated engine speed: 2100 rpm
Maximum torque: 1900 Nm, constant between 1200-1600 rpm
Fuel tank capacity: 600 L
AdBlue tank capacity: 55 L
Transmission:
The new stepless transmission, SDF T7780, is the result of years of production experience. Built at the DEUTZ-FAHR plant in Lauingen, Germany, it offers even greater efficiency and expands driving possibilities. The combination of advanced continuously variable transmission, clutch, and two hydrostatic units ensures optimal use of power.
Electro-hydraulic front axle (4WD) engagement with 100% differential lock
Forced and automatic front axle (4WD) and differential lock control
Electronic, automatically engaging parking brake (EPB)
Hydraulic System, Electro-hydraulic Lift, GTV:

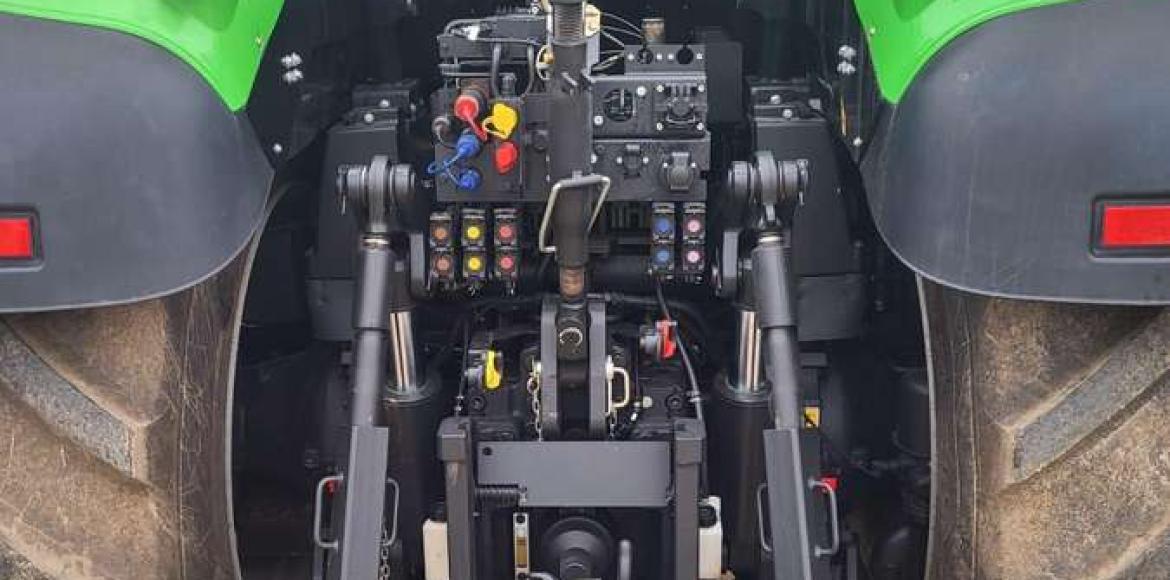

12,000 kg lift capacity, Category III rear hitch with automatic drawbar locks
Electro-hydraulic rear hitch control with force/position/mix depth adjustment
Integrated 5000 kg front lift
Load-sensing, variable displacement hydraulic system with 160 l/min pump
Three-speed rear PTO: 540E/1000/1000E
Electro-hydraulic GTV control with automatic load-dependent start and stop
Chassis, Cabin, Dimensions:
Front Wheels: 650/65 R34
Rear Wheels: 710/75 R42
Rims: Fixed (non-demountable)
Exhaust pipe with silencer near the right cab pillar
Pneumatic cab suspension system
Spacious (3 m²) Maxi Vision 2 cab with a large glass area, panoramic front window, tinted rear and side windows, heated and air-conditioned compartment with drink holder, radio preparation with antenna, and 4 speakers
Rear fenders equipped with buttons for rear lift, PTO, and hydraulic control
Air conditioner
Rear window wiper
4 front and 4 rear working lights mounted on the cab roof
Adjustable front mudguards with varying angles
Rear mudguard extensions
Tractor dimensions (L/W/H): 5268/3400/2550 - 2750 mm
Wheelbase: 3135 mm
Tare weight: 11,800 kg
Gross weight: 18,000 kg
Additional Equipment:

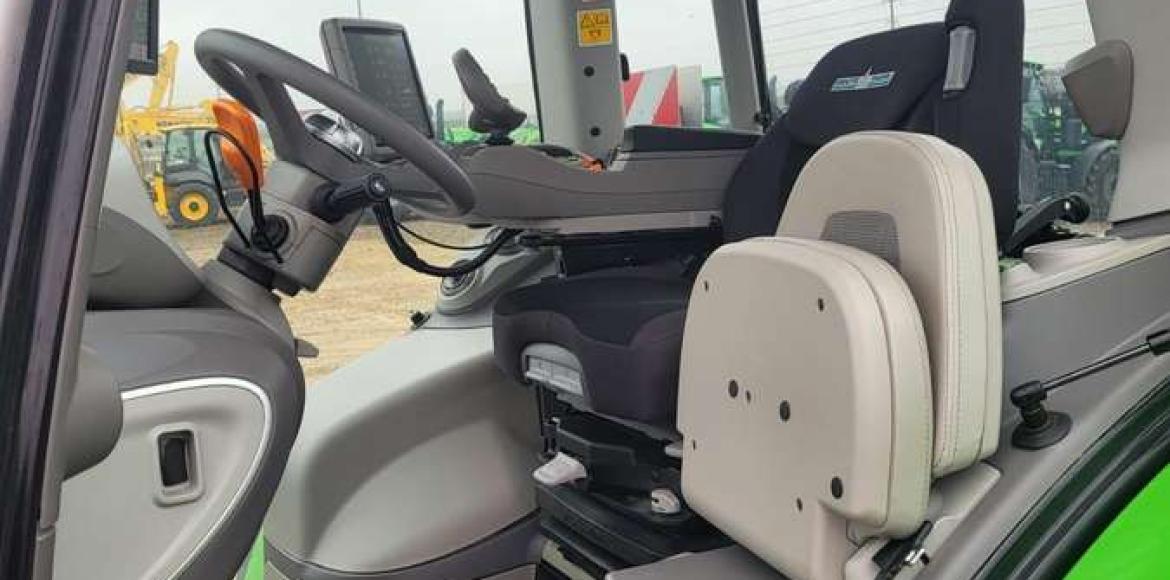

AE497: Max-Dynamic Plus DDS XXL operator seat (with leather inserts), air suspension with dynamic shock absorption, weight adjustment, pneumatic backrest contour adjustment, heated and ventilated, document holder on the outside of the backrest. Seat rotation: 8° left, 15° right. 500 mm wide frame for comfort
AF015: DAB+ radio FM/AM receiver with Bluetooth, USB port for MP3 playback. Fully integrated DAB+/FM antenna on the cab roof
AL013: Telescopic mirrors on both sides with lighting
AQ026: Automatic air conditioner
AV031: 4 LED working lights at the front and 4 LED lights at the rear mounted on the cab roof
CC112: Exhaust pipe with steel finish
CA005: Heated fuel filter
CZ121: Warrior Green package with additional LED lights, black cab color, synthetic leather seat upholstery
EM009: Transmission adapted for 70 km/h top speed, limited to 60 km/h at economic engine speeds
ER009: SR20 PRO GPS with Egnos signal, accuracy +/- 20 cm, prepared for RTK signal
ET005: Automatic steering system
GB452: Closed-center, load-sensing hydraulic system with 210 l/min pump

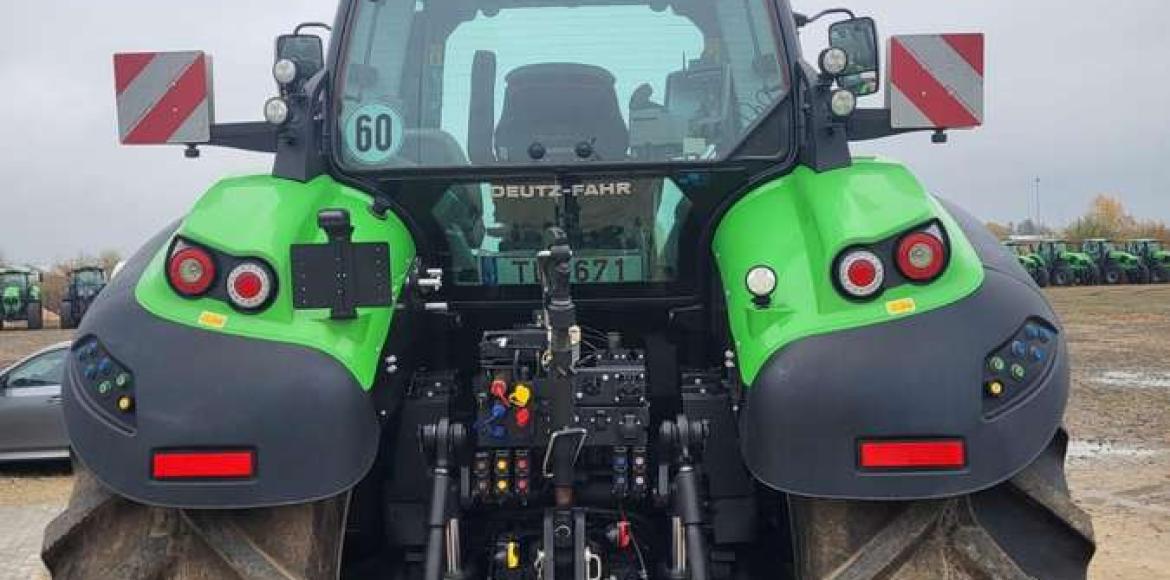

GP272: 5 electro-hydraulic pairs at the rear, electrically controlled, flow regulation, programmable operation time with timer, cross-control lever
GS023: Hydraulic (MR) + dual pneumatic trailer braking system with air compressor
GX001: Power Beyond direct oil supply line at the rear
LI027: Various diameter and spline count PTO shaft ends
NC049: Front axle suspension with dry-type disc brakes, front differential lock, and ASM system
RF1592: Michelin VF 650/60 R34 front tires; Michelin VF 710/70 R42 rear tires
RR001: Radar
SJ002: Cabin with opening and heated windows
